Finding the best CRT for N64 gaming in 2026 is a slightly different challenge compared to other retro consoles. The Nintendo 64 is unique in the retro gaming world because it does not output RGB natively – meaning the cable upgrade path that works so well for SNES and PS1 owners is not as straightforward for N64 players. This guide covers the best CRT types and specific models for N64 gaming, the best cable options available, and exactly what to look for when setting up your Nintendo 64 on a CRT in 2026.
Why the N64 is Different from Other Retro Consoles on a CRT
Most retro consoles from the same era – the SNES, PS1, Mega Drive, and Saturn – output RGB natively, allowing a direct high quality connection to a CRT via SCART or BNC. The N64 is the notable exception. Nintendo chose to omit RGB output from the N64, meaning the best native signal most N64 owners can get without modification is S-Video.
This is not a dealbreaker. S-Video on a good CRT still looks excellent for N64 gaming – significantly better than Composite and more than good enough to appreciate the N64 library the way it was intended. But it does mean the N64 CRT setup conversation is different from most other consoles, and understanding this upfront saves a lot of frustration.
N64 Cable Options for CRT Gaming – Compared
| Cable type | Signal quality | N64 compatible | Notes | Recommended |
|---|---|---|---|---|
| RF | Very poor | Yes | Avoid entirely | No |
| Composite (RCA) | Poor | Yes – included in box | Starting point only | Last resort |
| S-Video | Good | Yes – native | Best native option without mod | Yes |
| RGB SCART | Excellent | Requires mod | Needs RGB mod or UltraHDMI | With mod only |
| Component | Excellent | Requires mod or special cable | Best quality without RGB mod | With compatible CRT |
Best CRT for N64 – Recommended Models
Best Consumer CRT for N64: Sony Trinitron KV-27FS120
The same Sony Trinitron that tops the list for SNES gaming is equally strong for N64. The KV-27FS120 accepts S-Video natively which is the best you can get from an unmodded N64, and the 27-inch aperture grille tube handles the N64’s colour palette and geometry beautifully. Mario 64, Ocarina of Time, and GoldenEye all look exactly as they were meant to on this set.
If the 27-inch is too large for your space, the Sony Trinitron KV-20M42 is the compact alternative – same excellent tube technology in a more manageable 20-inch size, if you are very lucky you can find these for about $30 to $80 on Facebook Marketplace.
Best Budget CRT for N64: Any 20-inch Trinitron with S-Video
For N64 gaming specifically, the S-Video input is the most important feature to look for in any CRT. Any working 20-inch Sony Trinitron with S-Video will give you an excellent N64 experience. The difference between S-Video and Composite on the N64 is particularly noticeable – the N64’s composite output has a characteristic blurriness that S-Video largely eliminates.
Best PVM for N64: Sony PVM-20M4U
For the best possible unmodded N64 image, a Sony PVM fed via S-Video is a significant step up from any consumer CRT. The PVM-20M4U’s tighter convergence and more precise phosphor coating produces noticeably cleaner edges and more accurate colour than a consumer set running the same S-Video signal.
If you have an RGB-modded N64, the PVM becomes an even stronger choice – RGB via BNC into a PVM is the absolute best the N64 can look on any CRT, producing an image that surprises most people who have only seen N64 games on modern displays.
Best CRT for Modded N64: Any PVM or Trinitron with RGB Input
If you plan to RGB mod your N64 – either through a dedicated RGB mod board or via an UltraHDMI mod – then the CRT choice opens up considerably. Any CRT with RGB SCART (European sets) or BNC inputs (PVMs) will accept the modded N64’s signal and produce a dramatically sharper and more colourful image than S-Video alone. The jump in quality from S-Video to RGB on an N64 is one of the most dramatic cable upgrades in the retro gaming hobby.
Should You RGB Mod Your N64 for CRT Gaming?
This is the most common question among N64 CRT enthusiasts and the honest answer depends on your situation. Before deciding whether to mod, it is worth understanding how the mod affects your choice of best CRT for N64 gaming.
RGB mod your N64 if:
- You already own or plan to buy a PVM or a CRT with SCART input
- You want the absolute best image quality from your N64
- You are comfortable with modding or know someone who can do it
- You plan to keep your N64 setup long term
Don’t mod your N64 if:
- You only have a consumer CRT without SCART – S-Video already gives you the best signal that CRT can accept
- You are new to CRT gaming and still figuring out your setup
- Budget is a concern – RGB mod boards and installation cost money
- You want to keep your console in original unmodified condition

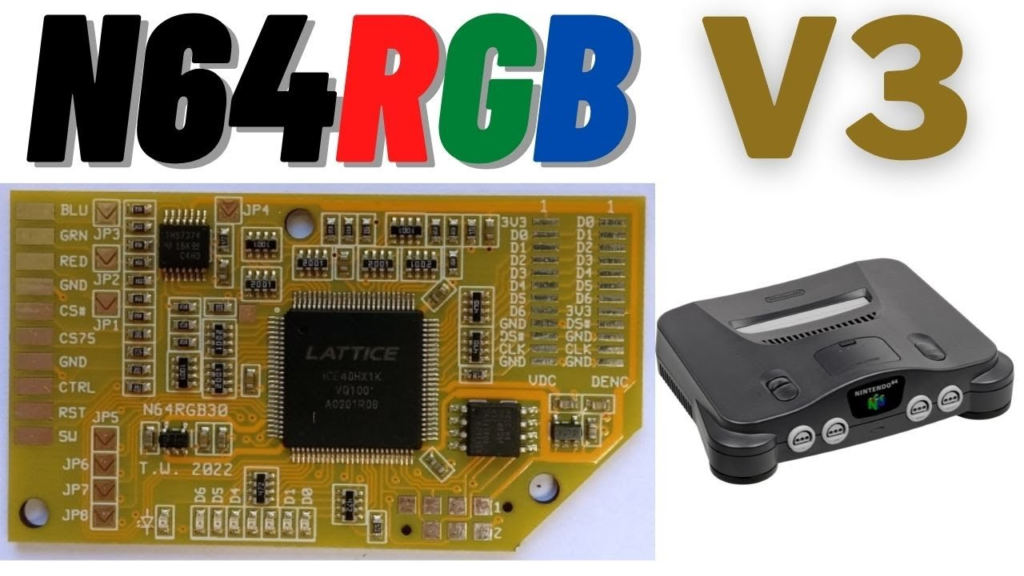

The most common and well-regarded RGB mod for N64 is the Tim Worthington RGB mod board, which adds native RGB output to any N64 console. UltraHDMI is another option that adds both HDMI and RGB output but costs significantly more. Both require soldering and are best left to experienced modders if you are not confident with electronics.
N64 CRT Setup – What to Look For When Buying
When hunting for the best CRT for N64 gaming, prioritise these features:
- S-Video input – essential for the best unmodded N64 signal. Check the back panel before buying.
- 20-27 inch screen size – the sweet spot for N64 gaming. The N64’s 240p output scales well to this size range.
- Sony Trinitron tube – sharper and brighter than shadow mask alternatives, better suited to the N64’s colour-heavy library.
- Good geometry – check for warping at screen edges before buying, particularly on larger sets.
- SCART input if in Europe – if you plan to mod your N64 for RGB, a SCART-equipped CRT gives you a clear upgrade path.
Where to Find the Best CRT for N64 Gaming in 2026
- Facebook Marketplace – still the best source for consumer Trinitrons. Search “CRT TV”, “Sony Trinitron”, or “retro TV” locally. Many are free or around $30 to $80.
- eBay – better for PVMs. Always check sold listings to calibrate prices before bidding.
- Thrift stores – worth checking regularly. S-Video equipped Trinitrons still turn up at low prices.
- r/crtgaming – knowledgeable sellers who describe condition accurately. Good for PVMs specifically.
Frequently Asked Questions – Best CRT for N64
Why doesn’t the N64 output RGB?
Nintendo made a deliberate hardware decision to omit RGB output from the N64, reportedly to reduce manufacturing costs and simplify the video output circuitry. This was unusual for the era – the SNES, which the N64 replaced, had full RGB output. The decision has frustrated retro gaming enthusiasts ever since, though RGB mod solutions have made it less of a practical obstacle for those willing to modify their console.

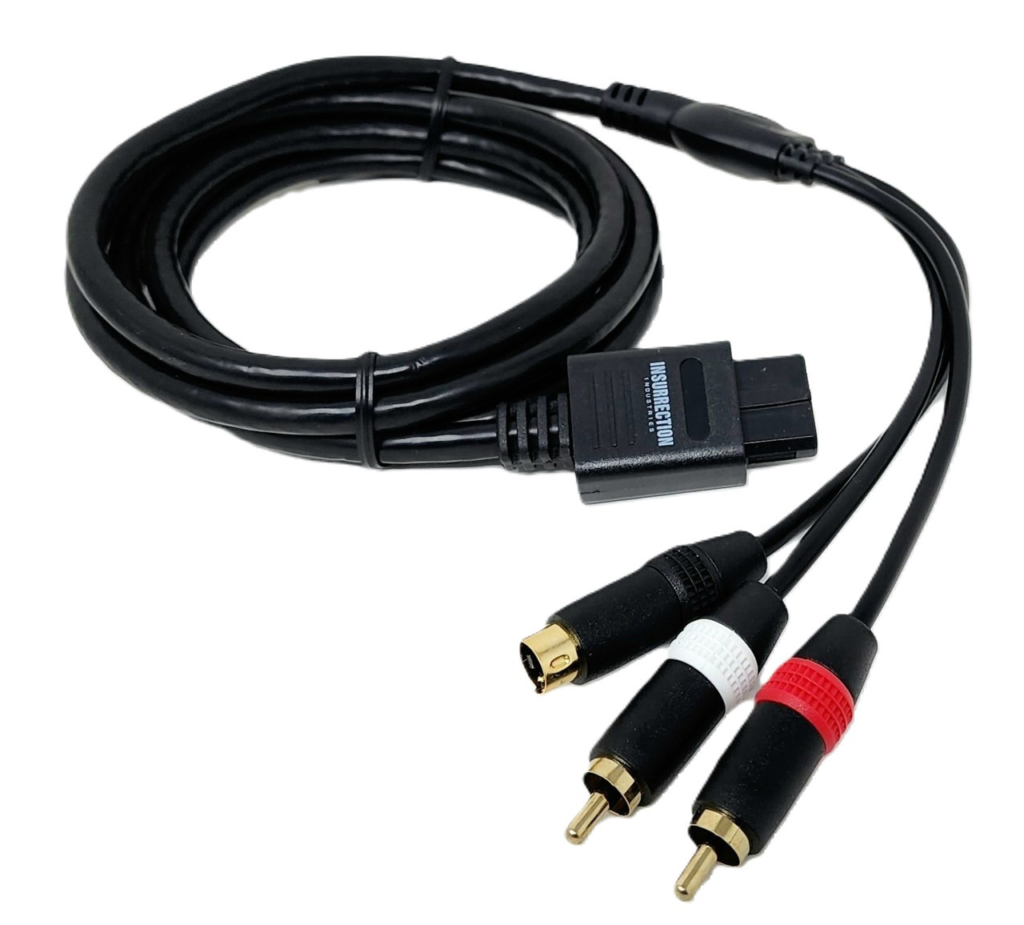

What is the best cable for N64 on a CRT without modding?
S-Video is the best cable for an unmodded N64 on a CRT. It gives a significantly cleaner image than Composite – sharper edges, better colour accuracy, and far less of the characteristic N64 composite blur. If your CRT has an S-Video input, a quality S-Video cable is the single best upgrade you can make to your N64 CRT setup without touching the console itself.

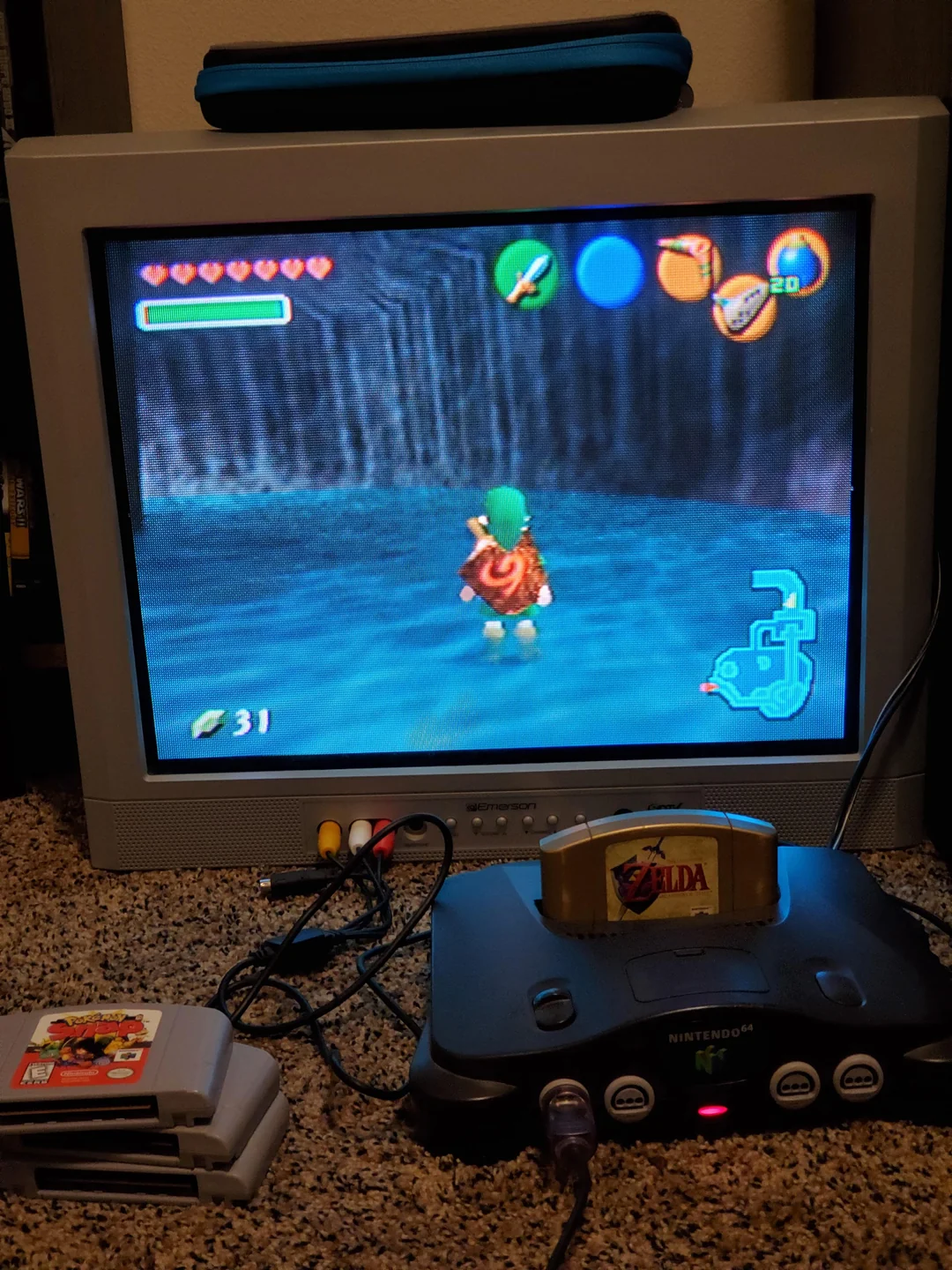

Does the N64 look good on a CRT without an RGB mod?
Yes – via S-Video into a good CRT the N64 looks excellent. Games like Super Mario 64, The Legend of Zelda: Ocarina of Time, and Banjo-Kazooie were all designed and tested on CRT displays running S-Video or Composite signals. S-Video on a Sony Trinitron is more than enough to appreciate the N64 library the way Nintendo intended. The RGB mod is an upgrade worth considering down the line, but it is absolutely not required for a great N64 CRT experience.
Can I use a PVM for N64 without an RGB mod?
Yes – most PVMs accept S-Video input as well as RGB, so an unmodded N64 can connect to a PVM via S-Video and still benefit from the PVM’s superior tube quality and convergence. The image will be noticeably better than the same S-Video signal into a consumer CRT. If you later add an RGB mod, the PVM is already ready to accept the upgraded signal via BNC without any further changes.
What is the Tim Worthington RGB mod for N64?
The Tim Worthington RGB mod is the most widely recommended RGB modification for the Nintendo 64. It is a small circuit board that installs inside the N64 and adds native RGB video output, allowing the console to connect to RGB-capable CRTs via SCART or BNC. The mod requires soldering and is best performed by an experienced modder. Once installed it transforms the N64’s image quality on a good CRT – the difference compared to S-Video is immediately obvious and widely considered one of the most worthwhile N64 modifications available.
Whichever route you take, pairing your Nintendo 64 with the best CRT for N64 gaming transforms how the console looks and feels compared to any modern display.
